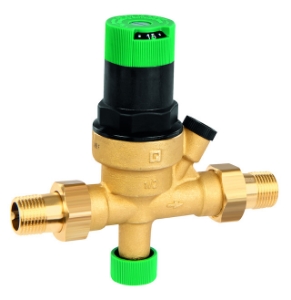

Honeywell Resideo - Füllarmatur mit Einstellanzeige, mit Gewindetülle, Vordruck max. 16 bar, Art.Nr.: VF06-1/2B

Artikelnummer: VF06-1/2B

Approvals and Standards: DIN/DVGW-certified check valve

Media Temperature (Max): 40C (70C with max. press. 10bar)

Connection Type: External Thread

Compatible With: Especially constructed for expansion tank mounting.

Inlet Connection Size: 1/2 in

Operating Pressure (Max): 16 bar

Outlet Pressure (Max): 3 bar

Outlet Pressure (Min): 1 bar

Preset Outlet Pressure: 1.5 bar

Ambient Operating Temperature (Max): 40 °C (70 °C with max. press. 10bar)

Seal Material: NBR, NBR

Valve Seal Material: NBR

Valve Spring Material: High Grade Synthetic

Valve Diaphragm Material: Fabric-reinforced diaphragm, NBR

Housing Material: Dezincification-resistant brass

Product Height: 144 mm

Product Length: 122.5 mm
