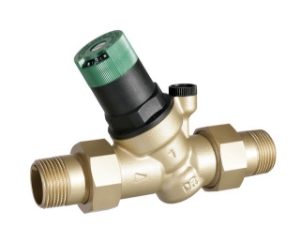

Picture of Honeywell Resideo - Druckminderer D05FS, Messing, Außengewinde G 1 1/2", Art.Nr.: D05FS-11/4E
Manufacturer: Honeywell Resideo

Honeywell Resideo - Druckminderer D05FS, Messing, Außengewinde G 1 1/2", Art.Nr.: D05FS-11/4E

CHF 156.45 incl tax
CHF 156.45 incl tax
CHF 214.30 incl tax

Artikelnummer: D05FS-11/4E

Valve Type: Pressure Reducing Valve

Ambient Operating Temperature (Max): 55 °C

Ambient Operating Temperature (Min): 5 °C

Approvals and Standards: DVGW

Connection Type: Internal Thread, External Thread

Inlet Pressure (Max): 25 bar

Media Temperature (Max): 30 °C ( 70 °C with max. press. 10 bar)

Outlet Pressure (Max): 6 bar

Outlet Pressure (Min): 1.5 bar

Seal Material: EPDM Rubber, EPDM Rubber

Valve Body Material: Brass

Valve Body Pattern: Two-way

DN Size: DN32

Controlled Media: Drinking Water

Pressure Drop (Min): 1 bar

Valve Diaphragm Material: EPDM

Valve Seat Material: EPDM

Ambient Relative Humidity (Max): 85% Non Condensing

:

:

:

SKU: D05FS-11/4E
*
*
*
