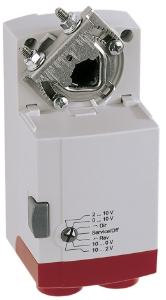

Honeywell Resideo - Klappenstellantrieb N10, 24 V, 3-Pkt. / 2-Pkt. mit 2 Hilfsschaltern, Art.Nr.: N1024-SW2

Artikelnummer: N1024-SW2

Color: White, Gray, Red

Includes: Universal shaft adapter, Mechanical end limits (manually adjustable), Declutch button, Function selection switch, Removable access cover, Anti-rotation bracket, cable grommets , Removable wiring box, with cable gland m²0x1,5 1/2"" NPT, Adjustable mechanical end limits

Actuator Opening Time: 110 sec

Ambient Operating Temperature (Max): +60 °C, +140 °F

Ambient Operating Temperature (Min): -20 °C, -5 °F

Mounting Type: Square damper shaft 6...13 mm; 45° steps

Operating Frequency: 50 Hz, 60 Hz

Product Depth: 62 mm

Rotation Direction: Rotation direction selectable by switch

Supply Voltage: 24 V AC, DC
