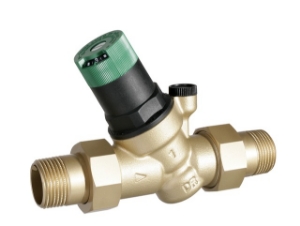

Honeywell Resideo - Druckminderer D05FS, Messing, Außengewinde G 2 1/2", Art.Nr.: D05FS-2E

Artikelnummer: D05FS-2E

Valve Type: Pressure Reducing Valve

Ambient Operating Temperature (Max): 55 °C

Ambient Operating Temperature (Min): 5 °C

Approvals and Standards: DVGW

Connection Type: Internal Thread, External Thread

Inlet Pressure (Max): 25 bar

Media Temperature (Max): 30 °C ( 70 °C with max. press. 10 bar)

Outlet Pressure (Max): 6 bar

Outlet Pressure (Min): 1.5 bar

Valve Body Material: Brass, Dezincification Resistant

Valve Body Pattern: Two-way

DN Size: DN50

Controlled Media: Drinking Water

Valve Seat Material: EPDM

Ambient Relative Humidity (Max): 85% Non Condensing

Ambient Relative Humidity (Min): 25% Non Condensing

Flow Coefficient (Max): 7.7 kvs

Port Diameter: 2 in
