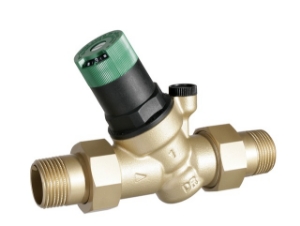

Honeywell Resideo - Druckminderer D05FS, Messing, Gewindetülle R 3/4", Art.Nr.: D05FS-3/4A

Artikelnummer: D05FS-3/4A

Application: Protect household water installations against excessive pressure from the supply system

Product Features: Also available without fittings, The adjustment spring is not in contact with the drinking water

Valve Type: Pressure Reducing Valve

Ambient Operating Temperature (Max): 55 °C

Ambient Operating Temperature (Min): 5 °C

Approvals and Standards: DVGW, ASC certified

Connection Size: 3/4 in, DN20

Connection Type: Internal Thread, External Thread

Inlet Pressure (Max): 25 bar

Media Temperature (Max): 30 °C ( 70 °C with max. press. 10 bar)

Outlet Pressure (Max): 6 bar

Outlet Pressure (Min): 1.5 bar

Preset Outlet Pressure: 3 bar

Product Height: 123 mm

Product Length: 163 mm

Seal Material: EPDM, EPDM

Valve Body Material: Brass, Dezincification Resistant

Valve Body Pattern: Two-way

:

:

:

:

:

:

:

:

:

:
